Alinta's wire-to-wire connector series ranges from 1.25mm to 6.35mm in pitch. Most of the wire-to-wire connectors listed below can serve as replacements for products from brands like Molex, JST, Hirose, JAE, AMP, and Dupont.

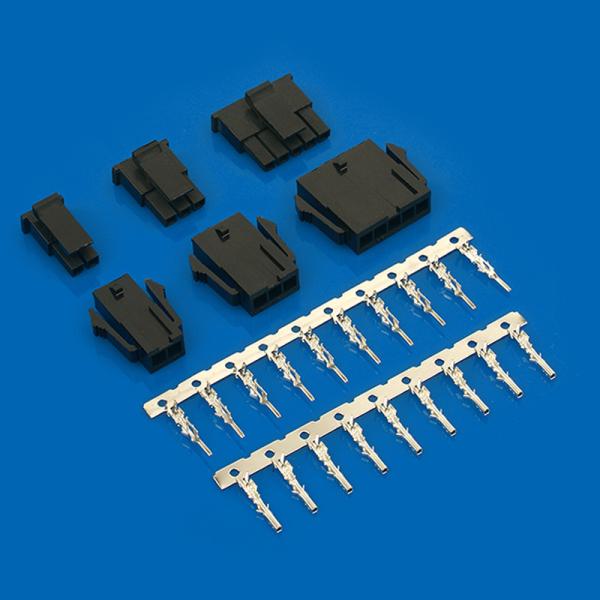

AL-Z5701 (MX3.0) series connectors have a 3.0mm pitch and can serve as replacements for MOLEX 43640, 43645 and similar models, belonging to the Micro-Fit series. These connectors are designed to withstand operating temperatures of up to 125°C, making them suitable for power applications. They are versatile in their configurations, supporting board-to-board, wire-to-board, and wire-to-wire connections across various circuit sizes and cable lengths.

Technical Data:

1. Positions: 2 to 12P

2. Current Rating: 5.0A AC,DC

3. Voltage Rating: 250V AC,DC

4. Temperature Range: -25℃ to +85℃ (Including temperature rise in applying electronical current)

5. Contact Resistance: initial value / ≤ 15mΩ, after environmental testing ≤ 25mΩ

6. Insulation Resistance: ≥1000MΩ

7. Withstanding Voltage: 1500V AC/minute

8. Applicable Wire: AWG#30 to #20

				5
